POLYPROPYLENE CAPACITOR

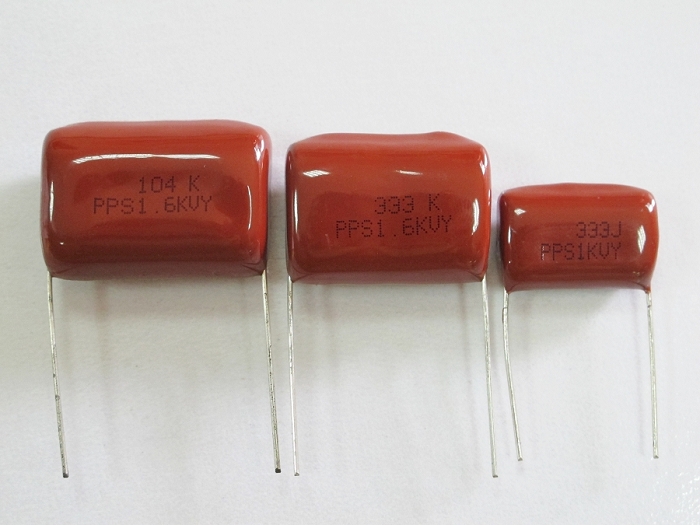

PPS are non-inductively wound with Polypropylene dielectric and Metallized Polypropylene film in series with aluminum foil for electrodes using copper-clad steel leads and epoxy resin coating. They are ideal for high frequency and high pulse rise time circuits and find wide application in snubbers, switcher & high voltage power supplies and electronic lighting ballast.
PPS TYPE:
|
RV
|
1000VDC
|
1200VDC
|
1600VDC
|
2000VDC
|
|
SIZE
|
W
|
H
|
T
|
P±1
|
W
|
H
|
T
|
P±1
|
W
|
H
|
T
|
P±1
|
W
|
H
|
T
|
P±1
|
|
uF
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
0.0010
|
25.0
|
10.5
|
6.0
|
21.0
|
25.0
|
10.5
|
6.0
|
21.0
|
25.0
|
11.0
|
6.5
|
21.0
|
25.0
|
12.5
|
7.0
|
21.0
|
|
0.0012
|
25.0
|
11.0
|
6.0
|
21.0
|
25.0
|
11.0
|
6.0
|
21.0
|
25.0
|
11.5
|
6.5
|
21.0
|
25.0
|
13.0
|
7.5
|
21.0
|
|
0.0015
|
25.0
|
10.5
|
6.0
|
21.0
|
25.0
|
11.5
|
6.5
|
21.0
|
25.0
|
12.5
|
7.0
|
21.0
|
25.0
|
14.0
|
8.0
|
21.0
|
|
0.0018
|
25.0
|
10.5
|
6.0
|
21.0
|
25.0
|
12.0
|
7.0
|
21.0
|
25.0
|
13.5
|
7.5
|
21.0
|
25.0
|
16.0
|
8.5
|
21.0
|
|
0.0022
|
25.0
|
11.5
|
6.5
|
21.0
|
25.0
|
12.5
|
7.5
|
21.0
|
25.0
|
15.0
|
8.0
|
21.0
|
25.0
|
17.0
|
9.0
|
21.0
|
|
0.0027
|
25.0
|
12.0
|
7.0
|
21.0
|
25.0
|
13.0
|
8.0
|
21.0
|
25.0
|
16.0
|
8.5
|
21.0
|
25.0
|
18.0
|
10.0
|
21.0
|
|
0.0033
|
25.0
|
12.5
|
7.5
|
21.0
|
25.0
|
15.0
|
8.5
|
21.0
|
25.0
|
17.0
|
9.5
|
21.0
|
25.0
|
20.0
|
10.5
|
21.0
|
|
0.0039
|
25.0
|
13.0
|
8.0
|
21.0
|
25.0
|
16.0
|
9.5
|
21.0
|
25.0
|
18.5
|
10.0
|
21.0
|
25.0
|
21.0
|
11.0
|
21.0
|
|
0.0047
|
25.0
|
13.5
|
8.5
|
21.0
|
25.0
|
17.0
|
10.5
|
21.0
|
25.0
|
20.0
|
10.5
|
21.0
|
32.0
|
20.0
|
10.5
|
27.5
|
|
0.0056
|
25.0
|
16.0
|
9.5
|
21.0
|
25.0
|
18.0
|
11.5
|
21.0
|
32.0
|
20.0
|
10.0
|
27.5
|
32.0
|
21.0
|
11.5
|
27.5
|
|
0.0068
|
25.0
|
16.5
|
10.5
|
21.0
|
32.0
|
17.0
|
10.5
|
27.5
|
32.0
|
21.0
|
10.5
|
27.5
|
32.0
|
22.0
|
12.0
|
27.5
|
|
0.0082
|
25.0
|
17.5
|
11.5
|
21.0
|
32.0
|
18.0
|
11.0
|
27.5
|
32.0
|
22.0
|
11.0
|
27.5
|
32.0
|
23.0
|
13.0
|
27.5
|
|
0.010
|
25.0
|
19.5
|
12.0
|
21.0
|
32.0
|
21.0
|
12.0
|
27.5
|
32.0
|
23.0
|
12.0
|
27.5
|
32.0
|
24.0
|
14.0
|
27.5
|
|
0.012
|
25.0
|
21.5
|
13.5
|
21.0
|
32.0
|
22.0
|
13.0
|
27.5
|
32.0
|
24.0
|
13.5
|
27.5
|
32.0
|
25.5
|
15.5
|
27.5
|
|
0.015
|
25.0
|
20.0
|
12.0
|
21.0
|
32.0
|
23.0
|
14.0
|
27.5
|
32.0
|
26.0
|
16.0
|
27.5
|
32.0
|
2.80
|
17.0
|
27.5
|
|
0.018
|
32.0
|
22.0
|
12.5
|
27.5
|
32.0
|
25.0
|
15.0
|
27.5
|
32.0
|
28.0
|
18.0
|
27.5
|
|
|
|
|
|
0.022
|
32.0
|
24.5
|
14.0
|
27.5
|
32.0
|
28.0
|
16.5
|
27.5
|
32.0
|
30.0
|
20.0
|
27.5
|
|
|
|
|
|
0.027
|
32.0
|
25.5
|
15.5
|
27.5
|
32.0
|
30.0
|
18.5
|
27.5
|
|
|
|
|
|
|
|
|
|
0.033
|
32.0
|
27.5
|
17.5
|
27.5
|
32.0
|
32.0
|
21.0
|
27.5
|
|
|
|
|
|
|
|
|
|
1. OPERATING TEMPERATURE : -40℃ ~ 85℃
2. DIELECTRIC STRENGTH : 150% of rated voltage for 1 minute at 25℃
3. DISSIPATION FACTOR : 0.1% MAX. at 1KHz, 25℃
4. INSULATION RESISTANCE : ≧30,000 MΩ
High corona starting voltage High current rating and high dv/dt Series electrode construction Self-healing property
